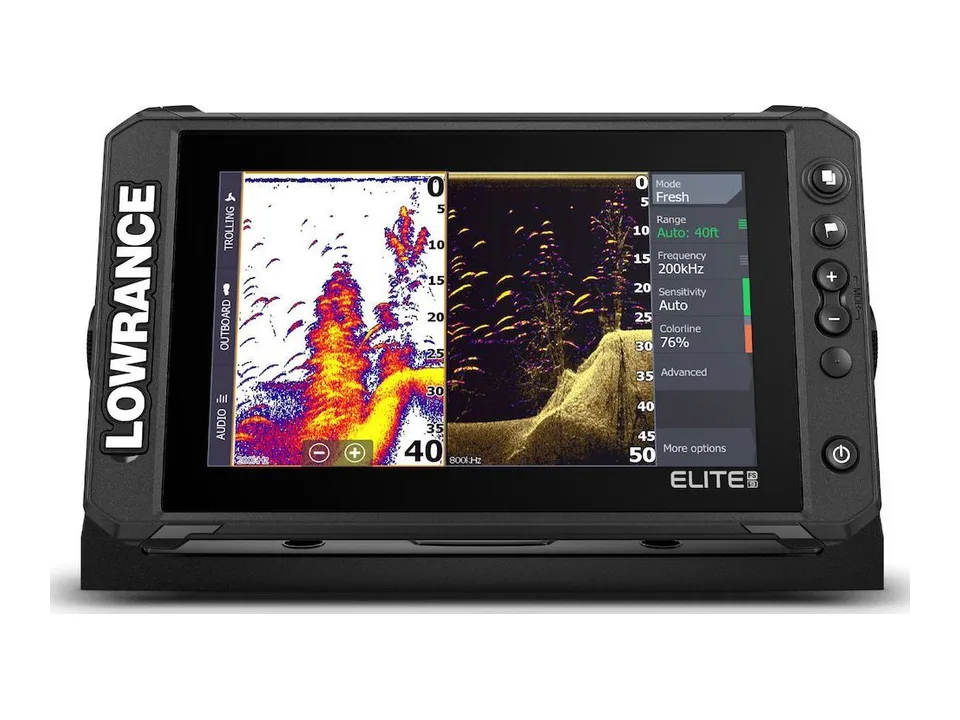

Lowrance Elite FS 9 with Active Imaging 3-in-1 Transducer Review
A 9-inch touchscreen fish finder and chartplotter with the Active Imaging 3-in-1 transducer, C-MAP charts, Ethernet and NMEA 2000, and ActiveTarget live sonar support.
By Outdoor Spec Desk Editorial· Updated
This page was drafted with AI assistance from manufacturers' specs and manuals, and is checked by our editor.
Our verdict
The 9-inch display for anglers building a Lowrance system: Ghost motor control, Ethernet, and a path to ActiveTarget live sonar. If you only need side imaging and charts, the Garmin ECHOMAP UHD2 93sv has the sharper screen.
Pros and cons
Pros
- Active Imaging 3-in-1 transducer covers CHIRP, SideScan and DownScan in one housing
- Ethernet and NMEA 2000 ports, and support for ActiveTarget live sonar
- Controls a Lowrance Ghost trolling motor or Lowrance Outboard Pilot from the screen, per Lowrance
- Lowrance lists a 2-year warranty with upgrade options to 5 years
Cons
- 800 x 480 pixels, against 1024 x 600 on the Garmin ECHOMAP UHD2 93sv
- Lowrance does not publish transmit power or depth for this bundle
- Lowrance's page names two different chart sets (C-MAP Contour+ in the spec table, Discover OnBoard in the feature text)
Specifications
| Type | Fish finder and chartplotter |
|---|---|
| Screen | 9 in multi-touch touchscreen |
| Resolution | 800 x 480 pixels |
| Sonar | CHIRP plus Active Imaging SideScan and DownScan, with FishReveal; ActiveTarget live sonar compatible (sold separately) |
| Transmit power | Not confirmed |
| Transducer included | Active Imaging 3-in-1 (transom mount) |
| Max depth (traditional) | Not confirmed |
| GPS | Built-in, 10 Hz, WAAS / EGNOS / MSAS |
| Mapping | C-MAP Contour+ (Lowrance spec table, US models) |
| Wi-Fi / app | Built-in Wi-Fi and Bluetooth 4.0 |
| Waypoints | 3,000 |
| Water rating | IPX7 with card door closed |
| Weight | 2.7 lb (1.2 kg) |
Who it suits
Anglers who run, or plan to run, a Lowrance Ghost trolling motor or ActiveTarget live sonar. Lowrance lists Ethernet and NMEA 2000 ports, ActiveTarget compatibility, autopilot control of the Ghost and Outboard Pilot, and the Active Imaging 3-in-1 transducer for CHIRP, SideScan and DownScan with FishReveal.
Who should skip it
Buyers who will never add a Lowrance motor or live sonar: the Garmin ECHOMAP UHD2 93sv has a sharper 1024 x 600 screen and a published 500 W transmit power. See ECHOMAP UHD2 93sv vs Elite FS 9. Kayak anglers should look at smaller units such as the HOOK Reveal 5 SplitShot.
What we could not confirm
Lowrance's product page conflicts with itself: the feature list mentions an HDI transducer and C-MAP Discover OnBoard charts, while the spec table and product name list the Active Imaging 3-in-1 transducer and C-MAP Contour+ for US models. We use the product name and spec table; check the transducer and chart card on the Amazon listing before you buy. Lowrance does not publish transmit power, depth or dimensions for this bundle.
Frequently asked questions
- Does the Lowrance Elite FS 9 support live sonar?
- Lowrance lists the Elite FS as compatible with ActiveTarget live sonar, which is sold separately.
- What transducer comes with part number 000-15692-001?
- The Active Imaging 3-in-1 transom-mount transducer, which provides CHIRP, SideScan and DownScan, according to Lowrance.
- Can the Elite FS 9 control a trolling motor?
- Lowrance lists autopilot control for its Ghost trolling motor and Outboard Pilot, and for MotorGuide Xi5 and Xi3 motors with MotorGuide's PinPoint Gateway.
Sources
The specifications and claims on this page come from these manufacturer documents. Figures are the manufacturers' own unless the text says otherwise.
